Picosecond Pulse Fiber Lasers



Picosecond Pulse Fiber Lasers

use passive mode locking , use high performance rare - earth doped fiber as working medium to realize the laser output of the picosecond pulse laser . The optical path is all - fiber structure without SESAM devices, so the operating life is greatly improved , and the optical isolator and the protection unit are used to improve the overall safety . The output laser has the characteristics of narrow pulse width , high output power, wide spectrum , stable wavelength and so on, and can accept parameter customization .



Characteristics

Apply
All - fiber structure Seed light source
Narrow pulse width  Nonlinear optics
Broad spectrum  Study on the Ultra - fast Phenomenon

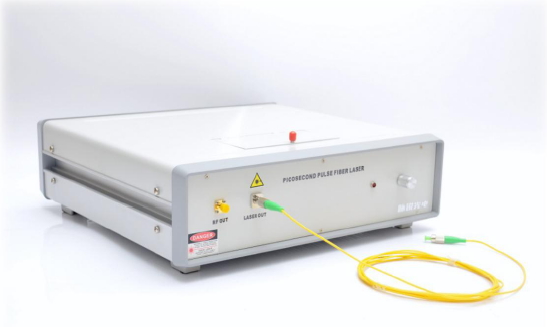

Model: SL-PPFL-xxx mW
Specifications Unit Typ. Remarks
Wavelength nm 1550 or 1060 Optional
Output power mW 10-50 Can't adjust
spectrum width nm

10\5

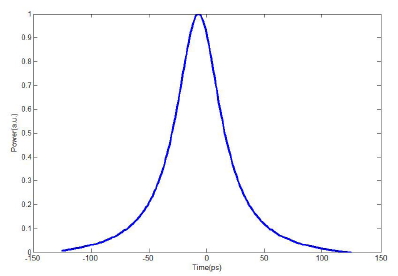

Pulse width ps

10-50

Can't adjust

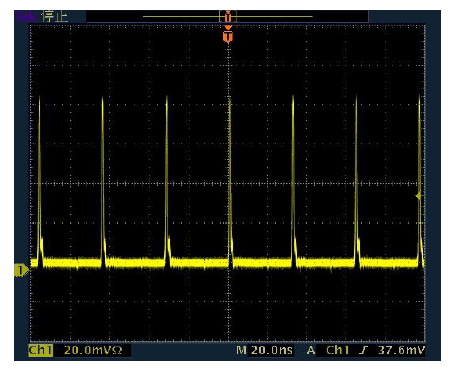

repetitive frequency MHz 1-30 Can't adjust
Fiber mode   SMF-28e or HI1060
Warm time min >5
Operating temperature 5 ~ 45
Power supply   DC5V or 110-220VAC
Size 370(W)〜350(D)〜110(H)
Warranty time
One year

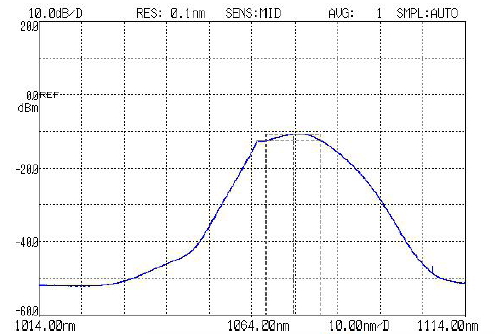

Spectral Width
