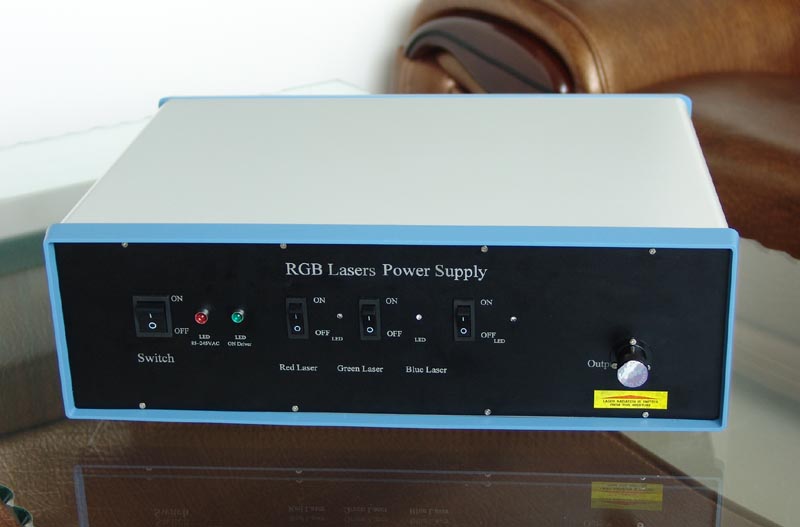

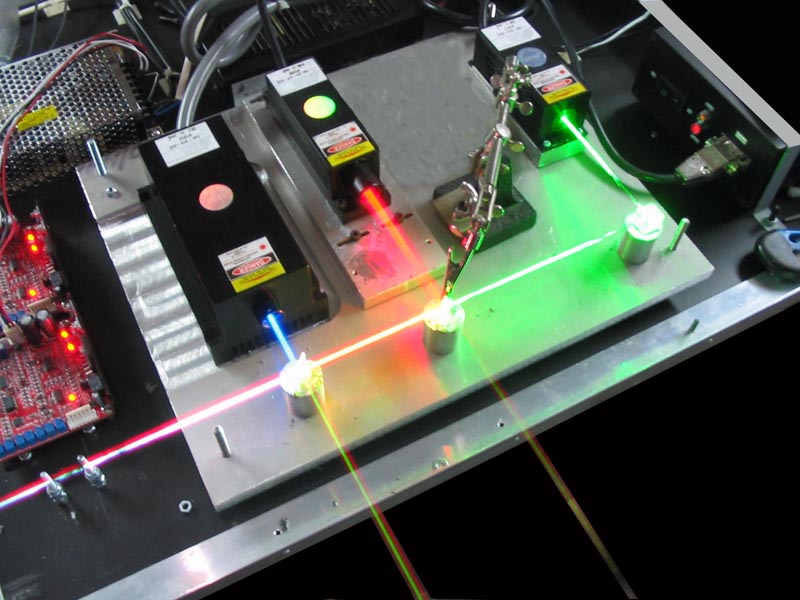

SailLaser's RGB-635 laser module is designed with the Red 635nm, Green 532nm, and Blue 473nm laser lights all in ONE BEAM. There are three power supplies for 3 different laser modules (red, green, and blue). The user can input the controlling signal to the different power supply to get different color. For example, if you have the RGB laser with the analog modulation, you can input 5V, 5V, 0V to the RGB laser to get a yellow color. If you input 5V, 3V, 0V to the RGB laser to get an orange color.The Red 635nm is diode laser. Green 532nm and Blue 473nm lasers are diode pumped solid state lasers. The beam quality of 635nm red diode laser is not as good as the diode pumped solid-state 671nm laser.  The beam spot of 635 laser is nearly square.

In addition, the fiber coupled RGB- series RGB lasers with FC or SMA905 connector are also available.  If interested, please send the request to e-mail:sales@saillaser.com for more detail information.

1 RGB-635nm and 532nm and 473nm Laser 7 RB-635nm and 473nm
2 RGB-650nm and 532nm and 473nm Laser 8 RB-650nm and 473nm
3 RGB-671nm and 532nm and 473nm Laser 9 RB-671nm and 473nm
4

RG-635nm and 532nm

 10 GB-532nm and 473nm
5

RG-650nm and 532nm

 11 Subminiature RGB laser, compact laser modules in it
6

RG-671nm and 532nm

 12 RGB Laser Lamp

RGB-635nm and 532nm and 473nm Laser



Specifications

Model

SL-RGB-XXX

Output Power @ 25 ¡æ

>2000mW(635nm red>900mw, 532nm green>500mw,473nm>700mw)

>1000mW(635nm red>500mw, 532nm green>300mw,473nm>350mw)

>500mW(635nm red>220mw, 532nm green>130mw,473nm>180mw)

>400mW(635nm red>200mw, 532nm green>100mw,473nm>130mw)

>300mW(635nm red>130mw, 532nm green>75mw,473nm>100mw)

>200mW(635nm red>100mw, 532nm green>50mw,473nm>65mw)

>100mW(635nm red>42.5mw, 532nm green>25mw,473nm>32.5mw)

Wavelength

 Red at 635nm, Green at 532nm,Blue at 473nm

Operation Mode

CW,TE00/TEM00/TEM00
Warm-up time (minutes)
<15
Beam Divergence (1/e2, Full Angle)
< 5mrad
Beam diameter at the aperture (mm)
<6
Operating temperature
10¡æ¡«35¡æ
Input Voltage 80-260VAC
Modulation
TTL Modulation or Analog Modulation
Expected Operating Lifetime
>5000 hours
