1550nm Fiber ASE Broadband Laser



　

Fiber ASE broadband laser module with flat spectrum technology, the best of output spectrum flatness was 1.5 dB, at the same time the output power is higher , the working wavelength coverage of C band or C +L band, suitable for optical sensing applications. Provide RS-232 interface and PC software, easy to control the light source module state.

Characteristics

 Apply
Stable output power Medical imaging
spectrum flatness Fiber sensing
Remote monitoring Fiber device testing
Model: SL-ASE-xx mW
Specifications Unit

                        Typ.

 Remarks
Wavelength nm

1528-1563

 C-band

1528-1603

 C+L -band
Output power dBm

                     10-20

 can be adjustable
Spectral flatness dB                       2 C-band
                      2.5 C+L -band
Output  isolation dB

                     45

 　
Stability(within 15minutes) dB

            ＋ 0.02

 　
Stability(within 8hours) dB

             ＋ 0.05

 　
Operating temperature ≧                     -20 ~ +65 　
Storage  temperature ≧

                     -40 ~ +85

 　
Fiber connector
FC/APC or  customized
 　
Fiber mode

Single mode fiber SMF-28e

 　
Operating voltage DC5V or 110-220VAC 　
communication interface DB9 Female(RS232) 　
Work mode ACC or APC 　
Size 260(W)〜320(D)〜120(H) 　
Warranty time One year 　

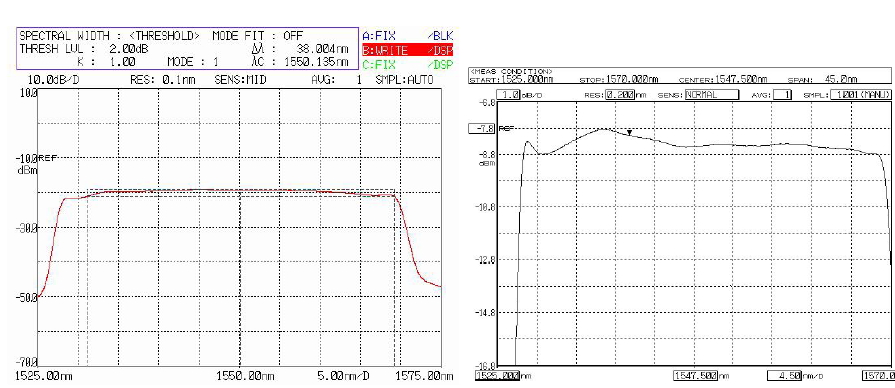

Spectral of C-band ASE

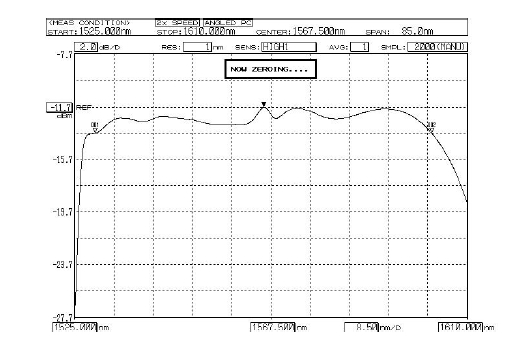

Spectral of C+L-band ASE
　
