Lower Noise
532nm Laser
|
|
|
|
|
Specifications
|
|
Model
|
SL-532nm-LN-XXXT
|
|
Wavelength
(nm)
|
532nm
|
|
Output
power (mW)
|
1-450mW
|
|
Operating
mode
|
CW
|
|
Transverse
mode
|
TEM00
|
|
Longitude
mode
|
Several
|
|
Power
stability (rms, over 4 hours)
|
<1%,
<3%,<5%
|
|
Noise
of amplitude (rms)
|
<1%
|
|
Warm-up
time (minutes)
|
<15
|
|
M2
factor
|
<1.2
|
|
Beam
divergence, full angle (mrad)
|
<1.5
|
|
Beam
diameter at the aperture (mm)
|
-2.0
|
|
Beam
height from base (mm)
|
24.8
|
|
Spectral
linewidth (nm)
|
<0.1
|
|
Polarization
ratio
|
>100:1
(0 or 90 degree)
|
|
Coherent
length (m)
|
>50
|
|
Operating
temperature (ºC)
|
10-35
|
|
Expected
lifetime (hours)
|
10000
|
|
Dimensions
of laser head (mm)
|
140.8(L)
กม 73(W) กม 46.2(H)
|
|
Net
weight of laser head (kg)
|
0.645
|
|

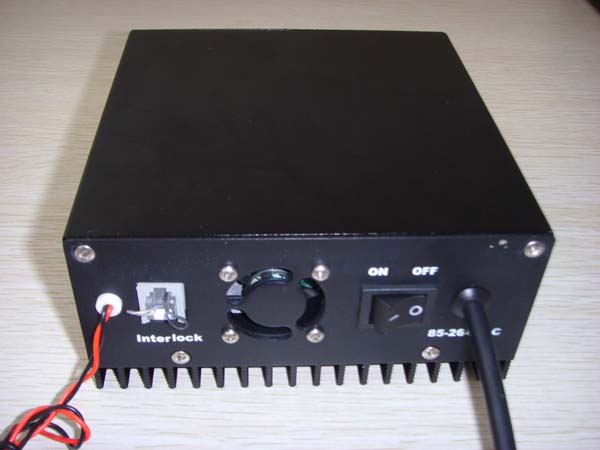

Power
supply(80-260VAC)
|
Integrated
driver (LD-WL206)
|
135(L)
กม 130(W) กม 61(H) mm3,
1kg
|
|
Warranty time
|
1 year
|
|
Remarks
|
Generally ,MLL laser
module has a coherent length of 1-2m.High power low noise version
available.
|
 |
 |
