DPSS 532nm Single Longitude
Mode Green Laser
|
|
|
|
|
Specifications
|
|
Model
|
SL-532nm-SLM-XXXT
|
|
Output
Power @ 25 ¡æ
|
1-200mW
|
|
Wavelength
|
532nm
|
|
Operation
Mode
|
CW, TEM00
, Single Longitude Mode
|
|
M2 factor |
<1.2 |
|
Beam Diameter
(1/e2) |
2.0mm |
|
Power stability
(rms, over 4 hours)
|
<3%(over 2 hours)
|
|
Output Noise (rms) |
<0.5% |
|
Warm-up time
(minutes)
|
<15
|
|
Beam height from base (mm) |
25 |
|
Coherent Length (m)
|
>50m
|
|
Spectra Linewidth |
<0.0001nm |
|
Beam diameter
at the aperture (mm)
|
<3
|
|
Beam Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Polarization
ratio
|
>100:1
|
|
Noise of
amplitude (rms)
|
~3%
|
|
Point stability
after warm-up (mrad)
|
<0.05
|
|
Operating
temperature
|
10¡æ¡«35¡æ
|
|

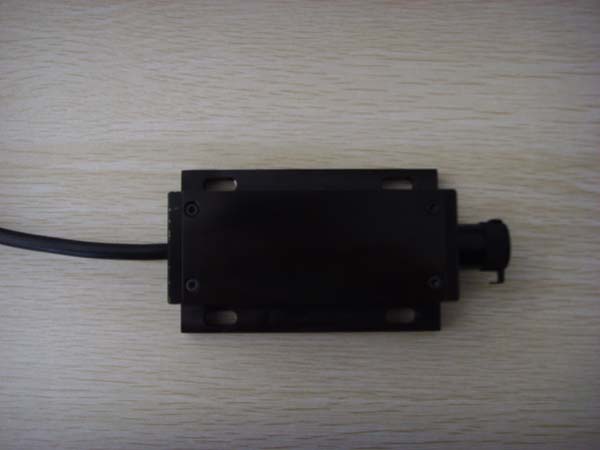

Dimensions of
Laser head (mm)
|
136
¡Á 73 ¡Á 46mm
|
|

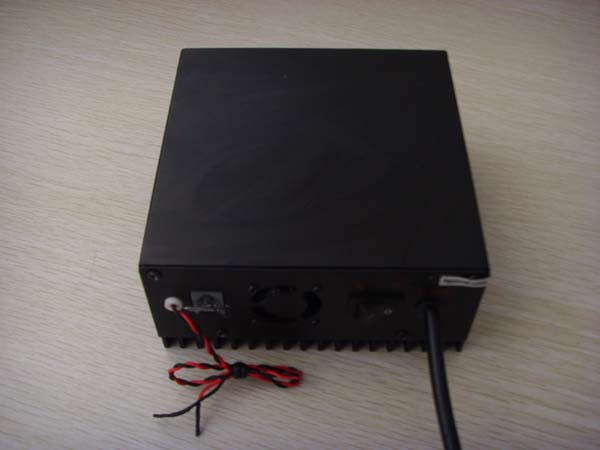

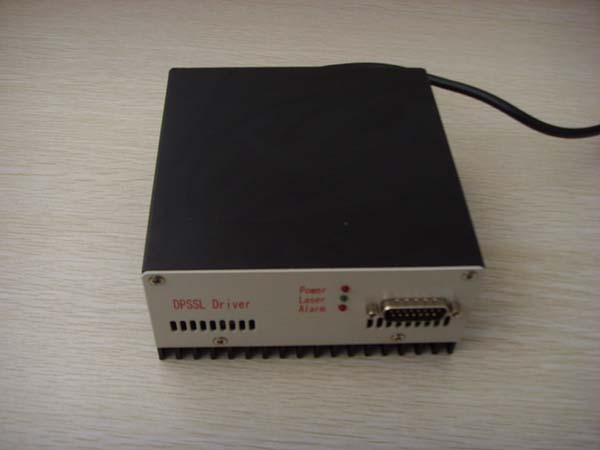

Dimensions of
power supply
|
153 x 136 x
65mm
|
|
Expected
Operating Lifetime
|
>10000 hours
|
|
Warranty time |
one year
|
|
 |
 |
 |
 |
