DPSS 1064nm Single
Longitude Mode Red Laser
|
|
|
|
|
Specifications
|
|
Model
|
SL-1064nm-SLM-XXT
|
|
Output
Power @ 25 ¡æ
|
1-10mW
|
|
Wavelength
|
1064nm
|
|
Operation
Mode
|
CW, TEM00
, Single Longitude Mode
|
|
M2 factor |
<1.2 |
|
Beam Diameter
(1/e2) |
1.0mm |
|
Power stability
(rms, over 4 hours)
|
<3%(over 2 hours)
|
|
Output Noise
(r.m.s, 10Hz - 20MHz) |
<0.2% |
|
Warm-up time
(minutes)
|
<15
|
|
Spectra Linewidth |
<0.1nm |
|
Beam Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Polarization
ratio
|
>100:1
|
|
Point stability
after warm-up (mrad)
|
<0.05
|
|
Operating
temperature
|
10¡æ¡«35¡æ
|
|
Dimensions of
Laser head (mm)
|
136
x 77 x 60mm
|
|

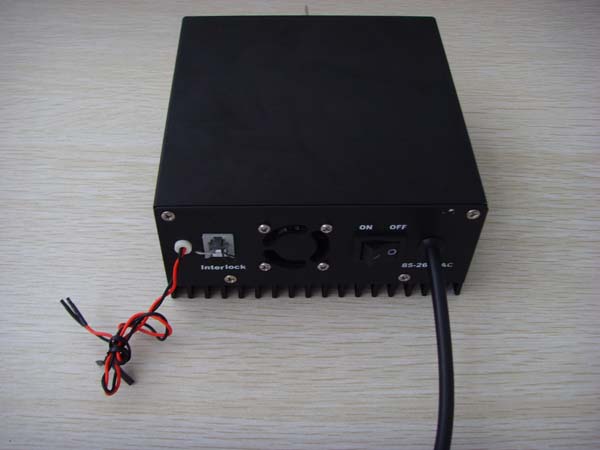

Dimensions of
power supply
|
130 x 120 x
62mm
|
|
Beam diameter
at the aperture (mm)
|
25
|
|
Expected Operating Lifetime
|
>10000 hours
|
|
Warranty time |
one year |
