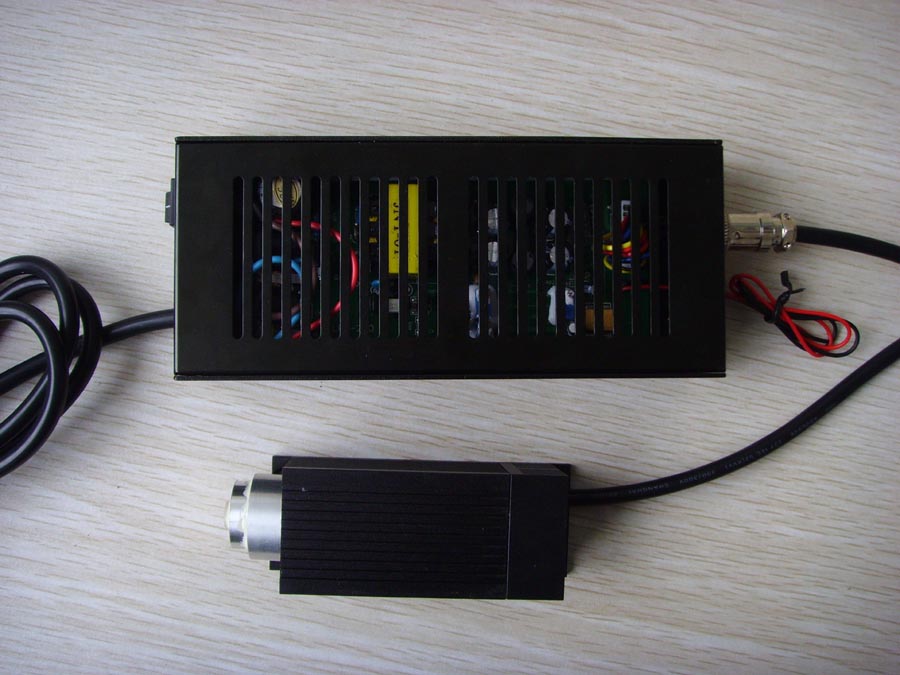

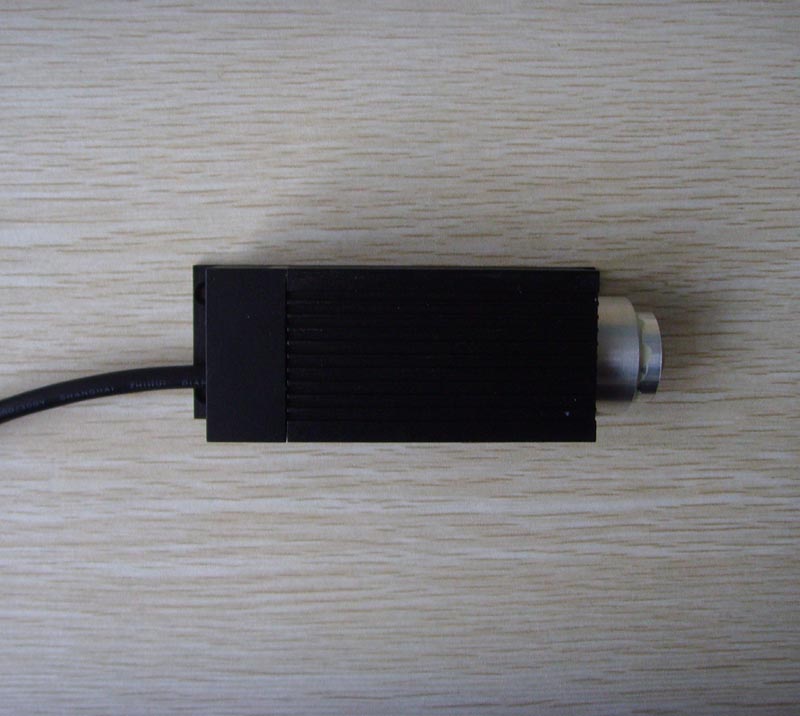

808nm Infrared Laser
Modules
|
 |
 |
|
Specifications
|
|
Model |
SL-808nm-3000mW-Line |
|
Wavelength (nm) |
808nm+-10nm |
|
Transverse mode |
CW/TM00 |
|
Power Stability (rms,over 2
hours) |
<5% |
|
Warm-up time (minutes) |
15 |
|
M2 factor |
<20 |
|
Line width |
<4mm @1M |
|
Full Fan Angle(¡ã) |
30,60 and 90Degree |
|
Modulation |
TTL Modulation or Analog Modulation |
|
Laser Size |
39 x 39 x 122mm(L) |
|
Operating Voltage |
85 - 220V |
|
Operating Temperature |
-10¡æ¡«£«40¡æ |
|
Storage Temperature |
-40¡æ¡«£«80¡æ |
|
Warranty time |
1year |
|
