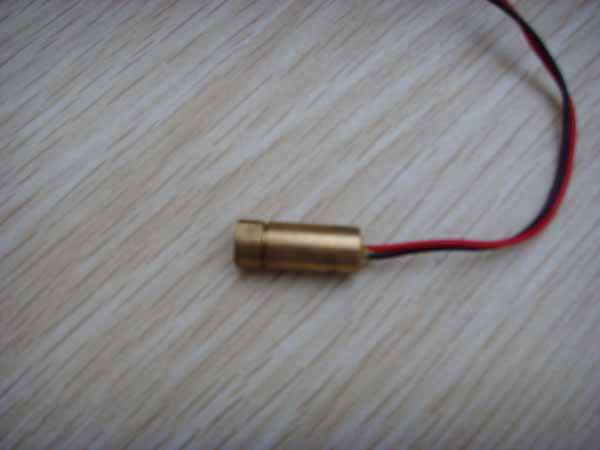

650nm Circular Beam Red Laser Dot Module

Specifications

Model

 SL-650nm-CB-XX
Wavelength( nm ) 650nm
Output power( mw ) 1-50mW
Operating Current <180mA
Operating Voltage <3V
Lens Sectionalglasslens
Size Φ12x35mm(can offer tailor-made size for you)
Beam Mode Fixed Beam，Circular beam, CW
Case temperature -10℃～+40℃
Storage temperature －20℃～+60℃
Beam size At1.5meters beam size<Φ140mm
Appearance material Aluminium material（The positive pole turns black ）
