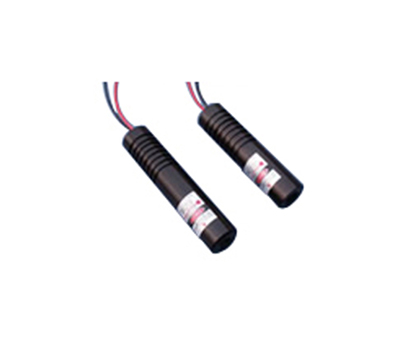

635nm Red Laser 1-50mw Dotting Module

Specifications

Model

SL-635nm-RLM-001(Dotting)

Wavelength

635nm(red)

Output power

Class IIIA P<5mW
Can design high power laser modules (such as 10mW，20mW，50mw etc.)

Beam Mode

Fixed focus, high quality glass focus lens, spot facula

Working Current

I<60mA

Trigger Voltage

DC=2.3V

Working Voltage

DC=4.5V

Expected operating lifetime

> 5000 hours

Laser Size

φ12×30mm or φ10×30mm

Size of Light Spot

<φ 8.0 mm at 30m
