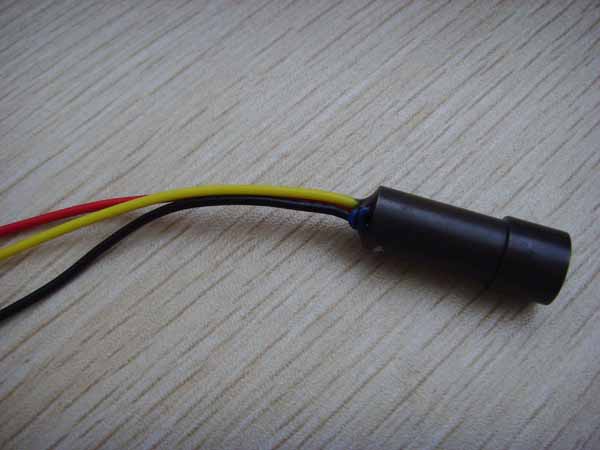

635nm Red Laser Module With TTL Modulation

Specifications

Model

 SL-635nm-RLM-XXT
Wavelength( nm ) 635nm
Output power( mw ) 1-10mW
Operating Current <80mA
Operating Voltage <5V
Lens BK7 Rod Lens
Size ¦µ11x30mm(can offer tailor-made size for you)
Beam Mode CW
Case temperature -10¡æ¡«+40¡æ
Storage temperature £­20¡æ¡«+60¡æ
Beam size <1mm at 1M
Modulation Red-Supply Voltage,

Black-0V,

Yellow-Modulation Input:3-5V Laser on,<1.6V Laser Off
Focus Adjusting
Appearance material Aluminium material£¨The positive pole turns black £©
