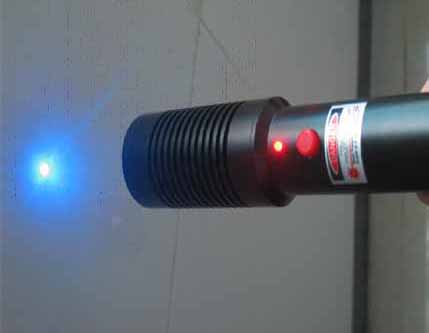

473nm Blue
Laser Pointer
|
|
 |
|
¡¡
|
|
Specifications
|
|
Model
|
SL-473nm-Pointer-002
|
|
Output
Power @ 25 ¡æ
|
5-10mW,10-20mW
|
|
Wavelength
|
473nm
|
|
Operation
Mode
|
Near TEM00
|
|
Power stability
|
<10%
|
|
Warm-up time
(minutes)
|
<5
|
|
Switch
|
Push button
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter
at the aperture (mm)
|
<1.5
|
|
Spectral
linewidth (nm)
|
<0.1
|
|
Range in
darkness (m)
|
3000-5000
|
|
Operating
lifetime (hours)
|
5000
|
|
Net weight of
laser head (kg) |
0.10
|
|
Operating
temperature
|
15¡æ¡«30¡æ
|
|
Dimensions of
Laser head (mm)
|
¦µ40¡Á220(L)
|
|
Power supply |
1 x Li18650 lithium
battery with
charger
|
|
Warranty time |
6 months
|
