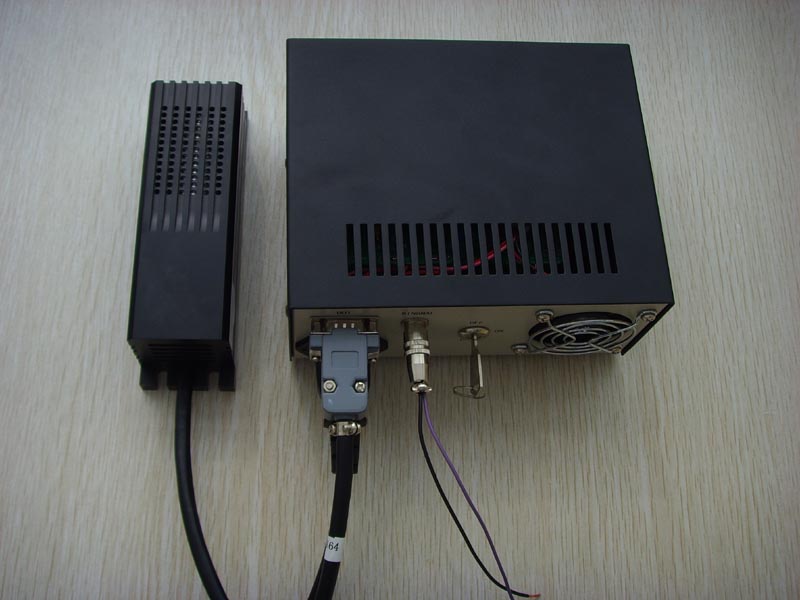

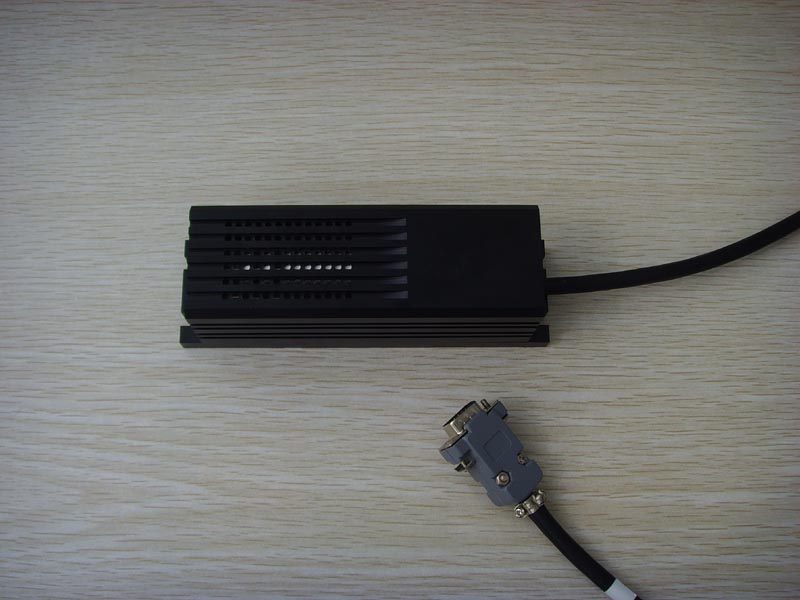

DPSS 532nm Green Laser Without TEC 300-500mw

Specifications
Model SL-532nm-XXXT
Wavelength 532nm(green)
Output power 300-500mw
Beam Mode TEM00
Beam Diameter(1/e2) < 2mm
Beam Divergence < 2 mrad
Cooling Method TEC
Beam Quality (M2) <1.2
Beam Ellipticity <10%
Pointing Stability < 0.2 mrad per hour
Power Stability <5%@2hours

Optimum Operating Temperature

 18-30oC
Operating Mode cw
Expected operating lifetime > 5000 hours
Laser Size(mm) 46กม52กม160
Power Supply 85-260VAC
Modulation TTL or Analog Modulation(0-10KHz)
Warranty Time 1year
